MEVO 112 Window System
MEVO 112 Window System

MEVO 112 Window System

PRODUCT  OVERVIEW

  • Marke :

    MEVO , China
  • Name :

    112 Window System
  • Farbe :

    Monument, White, Gray, Gold
  • Profile Thickness: :

    1.8mm (MAX)
  • Aluminum Mode: :

    6063-T5
  • Coating: :

    Powder Coating
  • Glass : :

    5+20A+5 Black Strip
  • Hardware : :

    Outward / Inward ROTO+HOPPE
  • Warranty: :

    10-year warranty
JETZT ANFRAGEN

MEVO 112 Window System

Innovative Integrated Welded Equal-Pressure Gasket

2 Gaskets Fused into 1, No Water/Dust Buildup

35mm Ultra-Wide Thermal Break + Vertical Isotherm

Double Thermal Insulation

German VBH System Hardware

Over 25,000 Cycles, Quality Assured

Product Specifications – 112 Window & Door System

Category Technical Parameters Standard
Aluminum Mode 6063-T5 /
Coating Powder Coating /
Profile Thickness 1.8mm (MAX) /
Frame Wall width 112mm /
Technical Standard GB/T8478-2020
Performance

·  Water Tightness: 700

·  Thermal Transmittance: 1.4

·  Sound Insulation: 42

/
Glass 5mm+20A+5mm Black Strip /
Hardware Outward/Inward VBH / Outward Top-Hung Können /
Colors Monument, White, Gray, Gold /
Warranty

10-year warranty

/

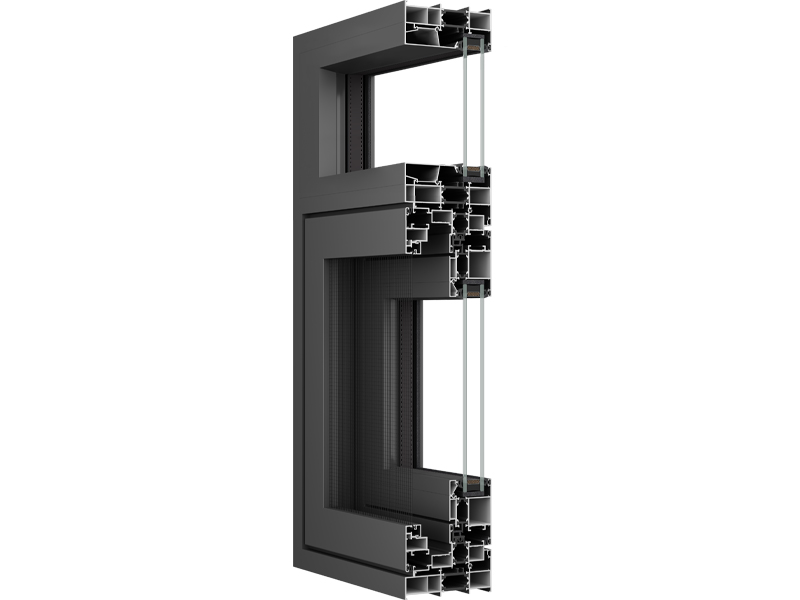

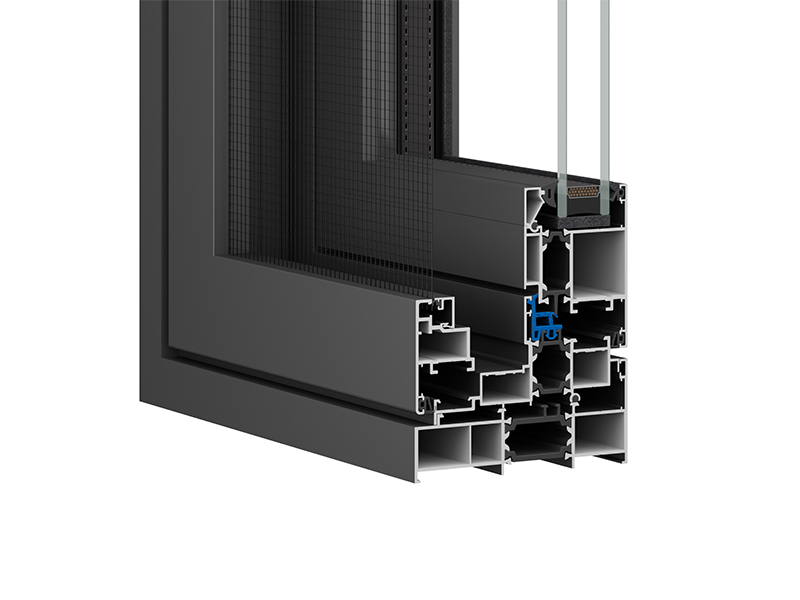

Product Details

Innovative Integrated Welded Equal-Pressure Gasket

2 Gaskets Fused into 1, No Water/Dust Buildup

35mm Ultra-Wide Thermal Break + Vertical Isotherm

Double Thermal Insulation

Flush Frame-Sash + Expansion Corner Sealant

Flat Aesthetic, Superior Sealing and Stability

MEVO 5.0 Smart Factory

Green Factory & Photovoltaic Power Storage



All MEVO 5.0 Smart Factories are equipped with photovoltaic roofs.

All factory electricity is generated and converted by in-house photovoltaic systems.

ERP Information System Integrated



Flexible, Systematic, Intelligent, Scaled

Driven by Digital Intelligence, Paving the Way for Industrial Upgrading



Imported German Automated Equipment



Leide CNC Full-process Production Line;

Deen Intelligent Strip Insertion Line;

Leike Laser Intelligent Machine Tool;

German HOMAG CNC Equipment, etc.

Direct Factory Benefits

Total Area

150000㎡ Production Base

Smart Factory

Smart Manufacturing 5.0

With ERP Information Management System

Modern Automated Intelligent Production Lines

Annual Output

1000000㎡+

Worry-free Delivery

Frequently Asked Questions

Q1: Quotation method?

A: Customized windows and doors are made-to-order products. Due to differences in design plans, dimensions, number of operable sashes, craftsmanship, and material requirements, the price of each unit may vary.

Q2: Lead Time Calculation?

A: Standard orders: 25 working days.

B:Special surface treatments require an additional 10–20 working days.

Q3: As a source manufacturer, do you support custom dimensions?

A:Yes, our high-precision equipment enables us to customize frames with strict tolerances, ensuring an exact match to your design.
